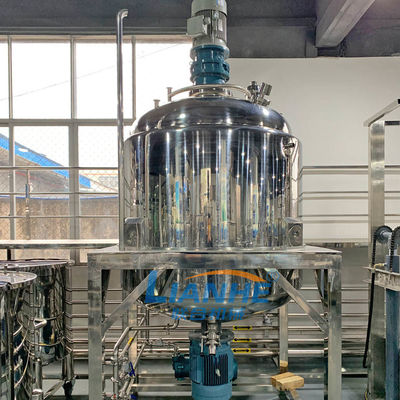

1000L Vacuum Emulsifier Mixer , Fixed Lid , One-Way Mixing Paddle
Détails sur le produit:
| Lieu d'origine: | La Chine |
| Nom de marque: | LIANHE |
| Certification: | CE , ISO , SGS , TUV |
| Numéro de modèle: | LH-VME 1000 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | Contact Us |
| Détails d'emballage: | Normalement emballé en film en bois de cas ou d'emballage, peut également être adapté aux besoins du |
| Délai de livraison: | 30 jours ouvrables |
| Conditions de paiement: | T/T, L/C, D/A |
| Capacité d'approvisionnement: | 20 ensembles/ensembles par mois |
|
Détail Infomation |
|||
| Capacité: | 1000L (peut être adapté aux besoins du client) | Agitation de la vitesse: | 0-65 t/mn, Siemens ou moteurs d'ABB |
|---|---|---|---|
| Vitesse d'homogénéisation: | 0-3600 t/mn, Siemens ou moteurs d'ABB | Matériel: | SUS304, SUS316L |
| Arguments de vente principaux: | Longue durée de vie | Fonction: | Émulsion, homogénéisant, mélange, chauffant, vide |
Description de produit
1000L Vacuum Emulsifier Mixer , Fixed Lid , One-Way Mixing Paddle
Product Description:
The Fixed Type vacuum emulsifying mixer has a large processing capacity in continuous work, and can discharge homogeneously in a cycle. It is suitable for continuous processing of single-variety products.
Product Structure:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Homogenizer Working Principle:
The material is emulsified in the shear crack through the strong shear, impact and turbulence between the high-speed rotating rotor and stator, and quickly crushes into 200 nm-2um. Material granulation, emulsification, mixing, blending and dispersion can be completed in a short time.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
